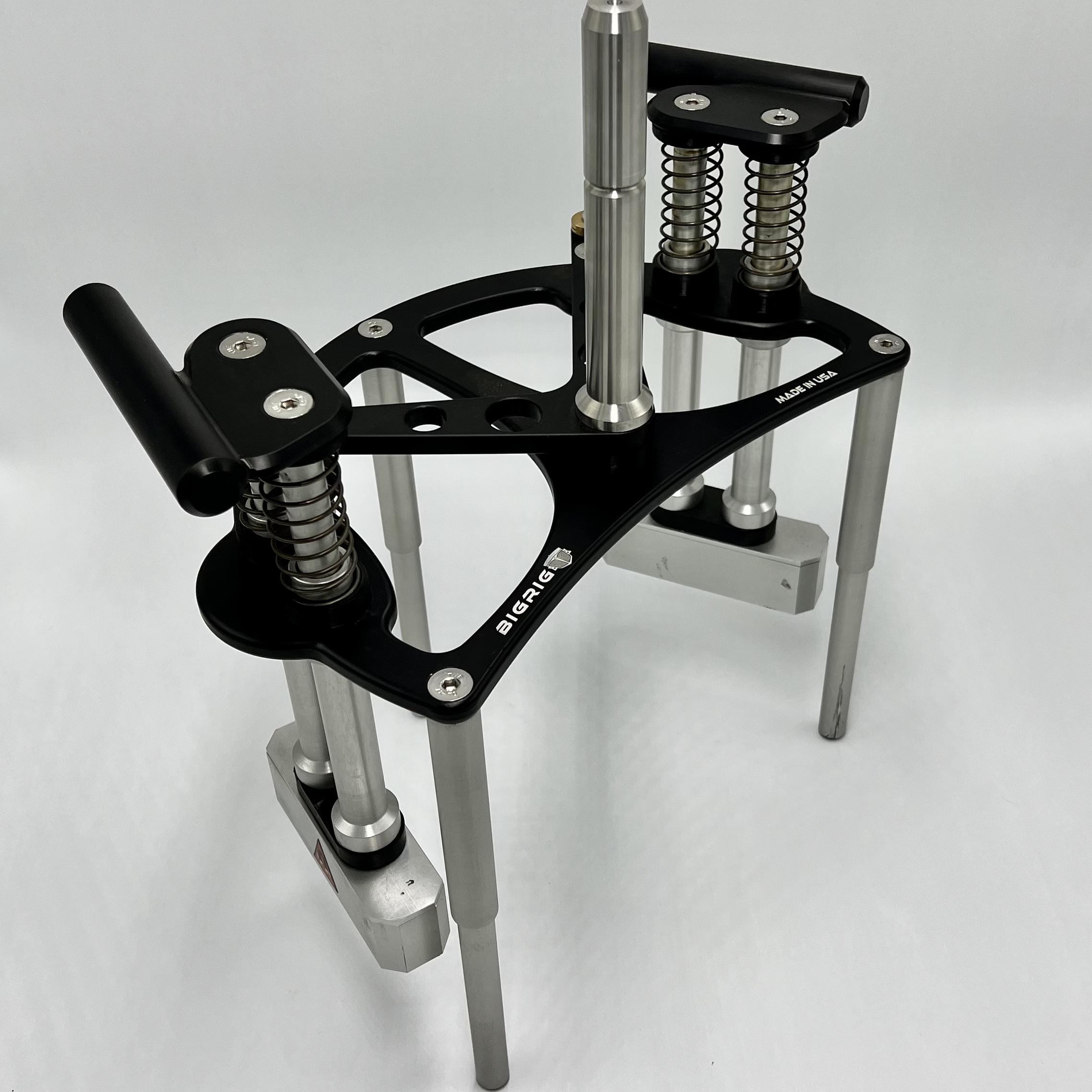

Wheel Fixture
Compatible with your “Blue” alignment system and available in all popular bolt patterns, our wheel fixtures are made of precision machined steel and aluminum components and have been engineered to eliminate unnecessary complexity and weakness that plague many competitors' fixtures. Easy to adjust, easy to calibrate, and with an eye toward ergonomics and safety, there’s simply nobody making a better fixture than Big Rig, and at a competitive price.
Available for 8 lug 275, and 10 lug 285.75 and 335mm wheel bolt patterns
Both long and short versions of each bolt pattern are available
Custom bolt patterns are only an RFQ away
Replaceable CNC polymer non-marking feet leave wheel surfaces unscratched
Maintenance adjustments eliminated; other manufacturers have as many as seven
Solid legs stay put and do not “walk out” of frame
Lowers the maintenance burden in your offline area
Securely housed magnets attach to studs, removing issues with non-standard lug nut sizes.
Dual magnetic attachment means fixture cannot partially or misleadingly seem to attach, it attaches fully or not at all
Secure non-ferrous magnet housings minimize risks of magnet pinch points and other workplace hazards
Each fixture is checked for quality and safety individually and tracked by number so we can make sure you’re getting only the best
Works with your existing calibration equipment and has a barcode tab for secure calibration
Call us at 1(888)3BIGRIG or email for quantity discounts on orders of 4 or more.
Prices start at $2,600 but will vary based on size/wheel bolt patterns. To see an accurate price for this item, please choose your desired size below.
from $2,600.00
Size:
Quantity:
SSAS Hub Fixture
For use with the BR18 Steering Shaft Alignment System, the hub fixture is meant to facilitate the correct attachment of the laser to the hub face.
Available for 8 lug 275, and 10 lug 285.75 and 335mm wheel bolt patterns
Custom bolt patterns are only an RFQ away
Maintenance adjustments eliminated; other manufacturers have as many as seven
Solid, single-piece legs stay put
Specially designed handles for ease of grip
Lowers the maintenance burden in chassis build area
Securely housed magnets attach to studs, removing issues with non-standard lug nut sizes.
Dual magnetic attachment means fixture cannot partially or misleadingly seem to attach, it attaches fully or not at all
Secure non-ferrous magnet housings minimize risks of magnet pinch points and other workplace hazards
Each fixture is checked for quality and safety individually and so we can make sure you’re getting only the best
Contact us to discuss bulk discounts at marketing@bigrig.biz or 1 888 3BIGRIG
Prices start at $2,900 but will vary based on size/wheel bolt patterns. To see an accurate price for this item, please choose your desired size below.
from $2,900.00
Size:
Quantity:
Big Rig Laser
Designed for use with the BR18 Steering Shaft Alignment System, the Big Rig Laser is the result of extensive research and development into making a robust and line-friendly unit that is also precise and meets laser safety standards.
CNC’d protective upper with precision machined aluminum lower attachment point
Class II laser with output below 1mW*
Idle circuitry automatically turns the laser off when not in use
Powered by the same Anker Powercore pack that comes with our Battery Packs.
Provides over 24 hours of work between charges
Fits standard 22mm spindle of Big Rig fixtures
*all lasers should be treated with due respect and caution while in use.
Contact us to discuss bulk discounts at marketing@bigrig.biz or 1 888 3BIGRIG
$1,900.00
Quantity:
RPG Laser
Designed for use with Big Rig’s BR11 Radar Plate Gauge system as well as earlier models of the BR18 SSAS, the RPG Laser is a precision laser manufactured by Germany’s Haweka and customized for shop use by Big Rig. With a protective outside case and an easily swappable battery load with rechargeable AA batteries, power issues within a shift are easily resolved.
NOTE: Works with the RPG Laser Spindle. Available separately
Precision laser has a resolution of <0.5mm/M
Includes rechargeable batteries
Heavy duty aluminum housing
Contact us to discuss bulk discounts at marketing@bigrig.biz or 1 888 3BIGRIG
$1,600.00
Quantity:
battery extension pack
If you’ve been using a Blue camera system, short battery life and the inability to “hot swap” batteries has to be one of your major complaints. The Big Rig battery Pack makes this a nonissue; instead of changing cameras or waiting for lengthy charge times, you simply swap out one easily-charged power bank with another and keep going. This patent-pending design is intuitive, robust, and simple.
Solid CNC construction from acetyl polymer
Installs in minutes
Less than 2 ounce increase in total sensor weight
Includes Anker Powercore 10,000amh power bank and charging cable
Can power a camera for 24+ hours on one charge and the power bank can be swapped during the alignment process.
Call us at 1(888)3BIGRIG or email for quantity discounts on orders of 10 or more.
$700.00
Quantity:
Securing Screw
There’s not that much to say about our Securing Screw, but there’s plenty to be said for it. It holds your “Blue” camera in place on a 22mm spindle as well as competitor’s products but is about 30% cheaper.
M14 screw with a 2.0 thread
CNC construction of sturdy acetyl polymer with a brass pin
Tested exhaustively for quality
Smooth and ergonomic profile
Call us at 1(888)3BIGRIG or email for quantity discounts on orders of 20 or more.
$70.00
Quantity:
turning tool
The Big Rig Turning Tool goes over a steering axle stud and gives the operator the leverage to steer the wheel to a straight ahead position. Made of solid 6061 aluminum, this tool is strong, simple and highly durable. This tool is over 600mm of anodized leverage.
Contact us to discuss bulk discounts at marketing@bigrig.biz or 1 888 3BIGRIG
$1,050.00
Quantity:
SSAS MAGNETIC TARGET
Targets are designed with adjustable calibration to allow inspection and alignment personnel to set the initial angle at either a value of zero or a toe-in value that will result in the correct steering wheel spoke alignment at end-of-line. When used properly as part of the Steering Shaft Alignment System, the accuracy and repeatability of the results is unequaled in the industry.
Magnetic attachment engages fully to surface without the potential for weak “halfway” attachments
Designed for visibility to avoid accidental collision
Contact us to discuss bulk discounts at marketing@bigrig.biz or 1 888 3BIGRIG
$1,750.00
Quantity:

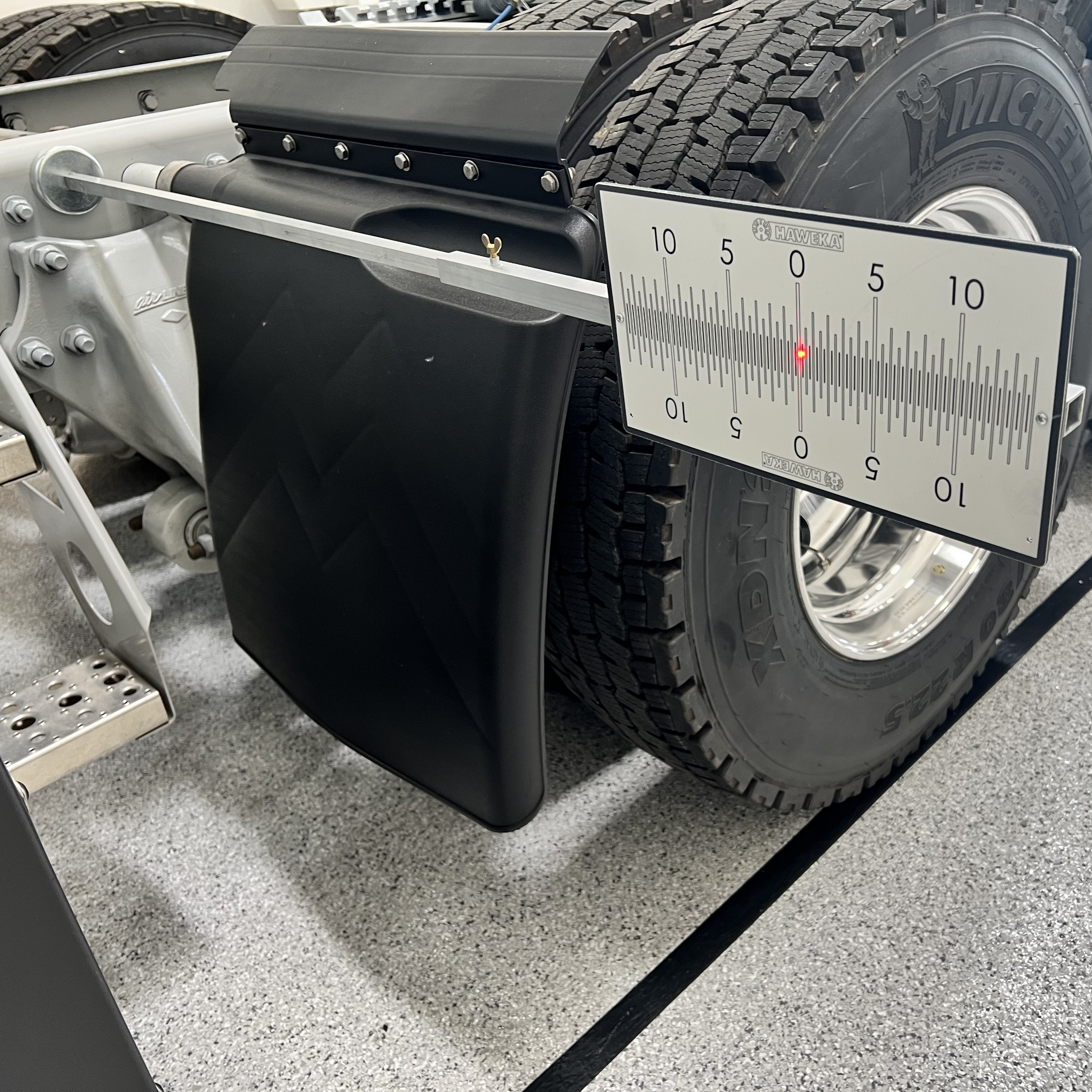

rpg target
Manufactured by Germany’s Haweka, the RPG target is designed for use with Big Rig’s Radar Plate Gauge system.
Clearly marked off with a scale for precision readings, the target pairs with the RPG laser to check auxiliary plates parallel to the frame of the truck. A solid single magnetic attachment anchors the target in place securely on the vehicle frame while readings are taken and adjustments are made.
Contact us to discuss bulk discounts at marketing@bigrig.biz or 1 888 3BIGRIG
$900.00
Quantity:
Anker Battery Spares
The Anker PowerCore 10000 is the power source around which we’ve designed our Battery Extension Packs for the “Blue” camera. The reasons are simple; it holds a charge well, swaps out easily, and charges quickly between uses. This battery package will provide over 24 hours of continuous operation and adds only a couple of ounces to the camera. Extras include a charging cable; for orders of large quantities or a charging cradle, please contact us directly.
*This item can only be shipped overland due to restrictions on lithium batteries. We apologize for any inconvenience; best advice here is to order sooner rather than later.
$66.00
Quantity:
DIDN’T SEE WHAT YOU WERE LOOKING FOR?
Contact us for more options or to request a physical catalog of our larger items!
